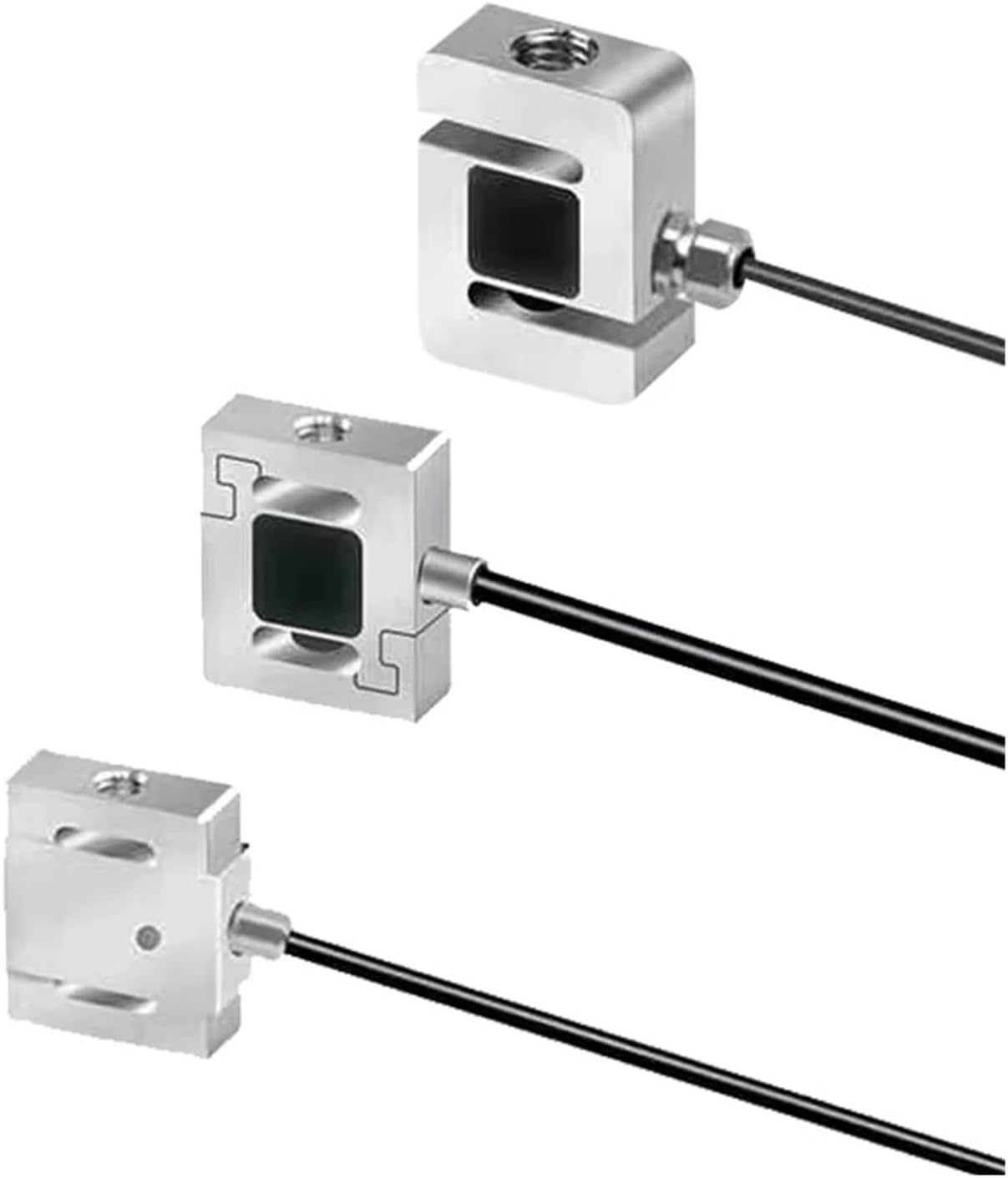

TA S4 Tension Pressure Force Measuring Load Sensor S Type Force Meter Tester Mechanical Arm Weight Sensor(5KG)

Party TimeShop you favesProduct DescriptionModel number1KG 2KG 5KG 10KGSensitivity1.0-2.0m.V/VHysteresis0.05%F.SNon-linearity0.1%F.SRelative creep over 30 min0.05%F.STemp. influence on sensitivity0.05%F.S/10Temp. influence on the zero signal0.05%F.S/10Zero output2%FSSafe Load Limited150%F.SUltimate Over Load200%F.SInsulation resistance5000 MOperating temperature range-20~+80Impedance350Reference excitation voltage5-10VMaterialStainless Steellevel of protectionIP65Mode of connectionInput+ : Red, Input- : Black, Output+ : Green, Output- : WhiteTheory : Resistance SensorUsage : Pressure SensorMaterial : MetalType : Magnetic SensorOutput : Analog SensorCapacity : 0~10KGType : Load Cell/Force SensorSensitive : 1.0-2.0m*V/VHysteresis : 0.05%F.SNon-linearity : 0.1%F.SCreep In 30 Minutes : 0.05%F.SZero Balance : 2%F.SOperating temp. range : -20 ~ 80Temp. effect on zero : 0.05% F.S. / 10Temperature coefficient of sensitivity : 0.05%F.S. / 10Safe Load Limited : 150%F.SUltimate Over Load : 200%F.SInsulation resistance : 5000MImpedance : 350Excitation Voltage : 5~10VEnvironmental Protection : IP65Material : stainless steelOutput : Analog Signal

• 【Resilient Design】 Oil-proof, water proof, resistant to various environments.
• Stable Structure: S beam pattern offers consistent performance. Easy to install.
• 【Versatile Applications】for use in mixing stations, batching machines, asphalt stations, and more.
• 【Feature】 With overload protection device, good output symmetry, high accuracy, compact structure and complete specifications
• 【Suitable for】 Batching scale, electronic-mechanical scale, crane scales, automatic weighing instrument and other force value measurement and control
