Multichannel Temperature & Data Recorder, 7-inch Color Touchscreen Display for Industrial Temperature Monitoring & Lab Data Acquisition

Product DescriptionWith an IP45 protection rating and built-in handle, it withstands harsh industrial conditions and offers easy portability. The dual power supply (AC 85-265V / DC 24V) and optional GPRS communication make it for both fixed installations and remote monitoring applications, delivering accurate, stable performance for critical processes.SpecificationsProduct Name: Multichannel Temperature & Data RecorderDisplay: 7-inch Full-Color TouchscreenChannels: 8CH (Standard), Expandable to 64CHInput Types: Thermocouple (K/E/R/B/N/T/J/S/WRE5-26/WRE3-25), RTD (Pt100/Cu50), Current (4-20mA/0-10mA/0-20mA), Voltage (0-5V/0-10V/1-5V)Memory: 70MB Internal + SD Card SlotConnectivity: USB, RS232C, RS485, LAN, Modbus, GPRS (Optional)Protection: IP45Power Supply: AC 85-265V, DC 24VKey Features: Expandable Channels, Multi-signal Support, Data Export, Rugged Design, Dual Power InputApplication: Industrial Temperature Monitoring, Laboratory Data Acquisition, Remote Process Control

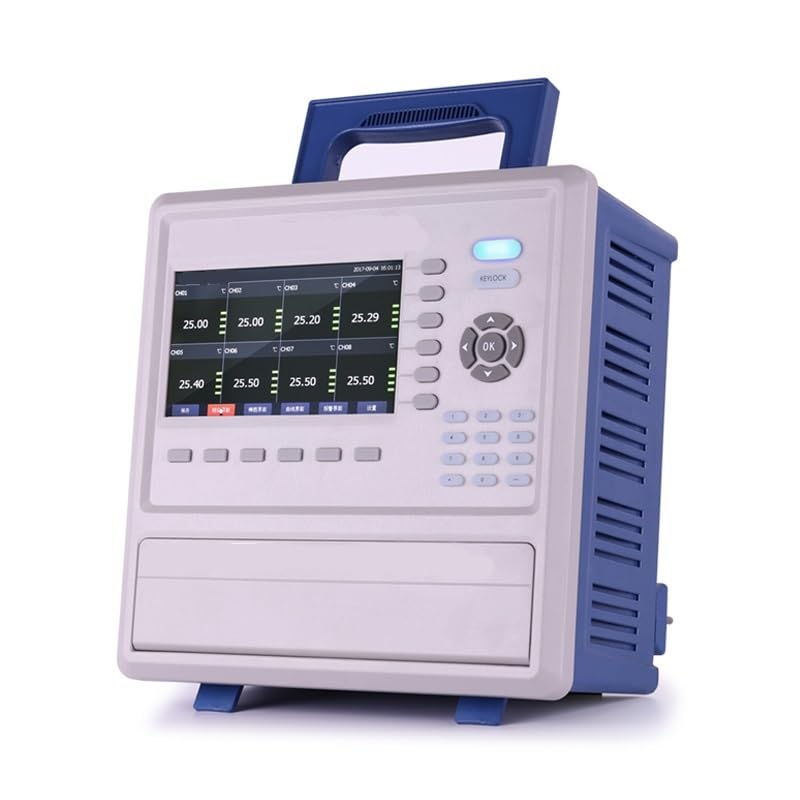

• 【7-inch Full-Color Touchscreen】7-inch vibrant touchscreen with full Chinese input, delivering intuitive operation and clear multi-channel data visualization for industrial monitoring.

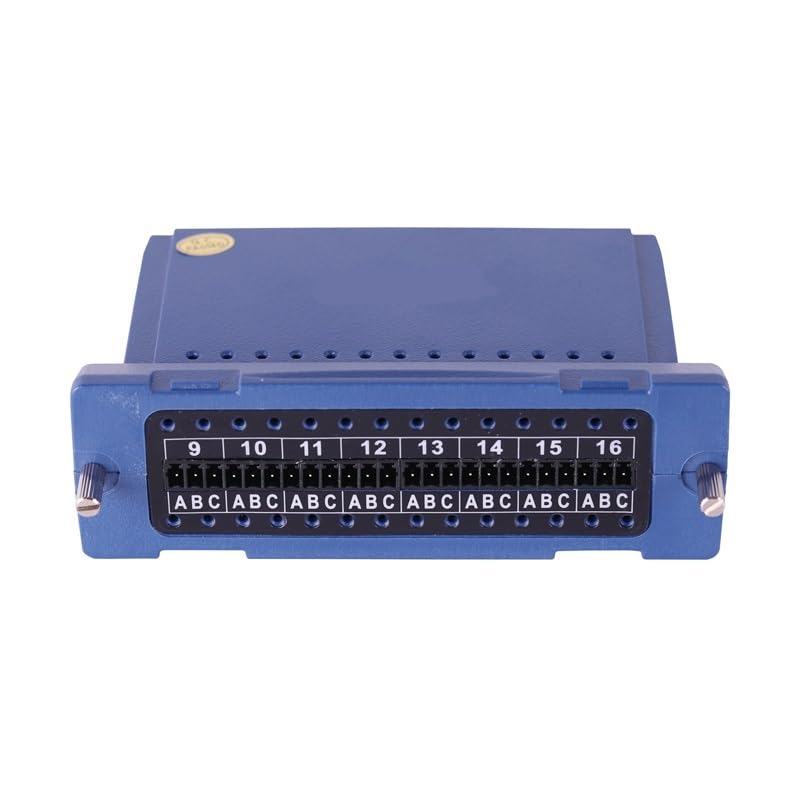

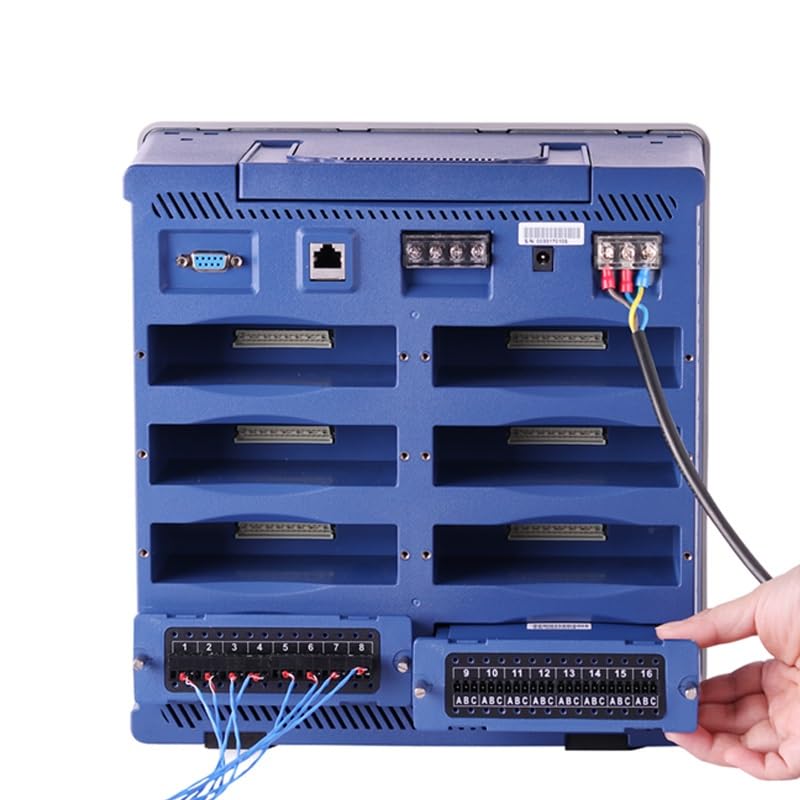

• 【Expandable Multi-channel Inputs】8 channels as standard, supporting thermocouple, RTD, current, and voltage inputs for versatile signal acquisition.
• 【Robust Data Management】70MB internal memory + SD card support, with USB/RS485/LAN/Modbus connectivity for seamless data export and remote monitoring.
• 【IP45 Rugged Design】IP45 protection rating with a built-in handle, ensuring durability in harsh industrial environments and easy portability between workstations.
• 【Dual Power Supply】Supports AC 85-265V and DC 24V power inputs, with optional GPRS wireless communication for flexible deployment in remote locations.
